Motorola RDV5100 Two Way 5 Watt 10 CH VHF Business Radio

Support direct team communication with this purpose-built portable radio. Manufacturer evidence identifies VHF business radio, 5-watt output, and 27 business-exclusive frequencies.

Who it is for

The RDV5100 is the VHF model of Motorola's RDX series of on-site business radios: a 5 watt, 10 channel portable with no display, on a heavy-duty metal diecast chassis, for staff working outdoors at the yard or indoors on the shop floor. Motorola gives it 27 business-exclusive VHF frequencies and 219 codes, including customized PL and DPL codes, wind-noise reduction, a 2000 mW speaker designed for noisy areas, voice channel announcement and a tricolor LED for calling and monitoring. With an accessory it adds hands-free voice activation and radio-to-radio cloning. It works with duplex repeaters, and Dynamic Talkaround Scan switches between repeater and talkaround modes on its own. If the band choice is still open, read UHF vs VHF two-way radios.

Size, weight and battery

• Size, weight and battery: these figures vary with the battery pack supplied; confirm the pack and its rated dimensions, weight and runtime with CMI before ordering.
• Power and band: 5 W on VHF 146 to 174 MHz; 10 channels at 12.5 kHz spacing; 2 W audio output at 8 ohms; conventional operation.
• Protection: IP55 sealing; meets MIL-STD 810 C, D, E and F; operating temperature -30 C to +60 C.
• Warranty: 2 years standard.

Licence

This radio operates on licensed business frequencies. An FCC business radio licence (Part 90) is required to transmit; CMI can point you at the process when you order.

Accessories that fit

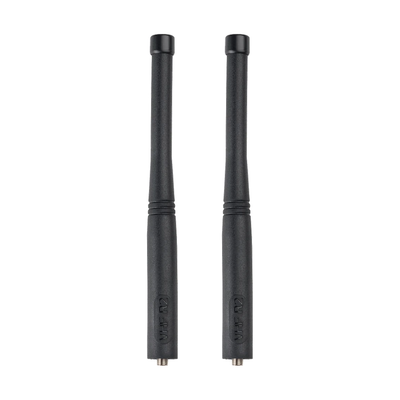

CMI connector code: MA. Motorola's RDX data sheet and RDV5100 page name no accessory part numbers. CMI lists a RAN4041A replacement antenna pair by CMI's own title for the RDV5100, and earpieces, headsets and speaker microphones on connector code MA; ask CMI by code.

Part number

CMI part number: RDV5100. For the 16 channel UHF RDX model see the Motorola RDU4160D six-pack; see CMI's Motorola RDX series, business radio collection and Motorola collection.
